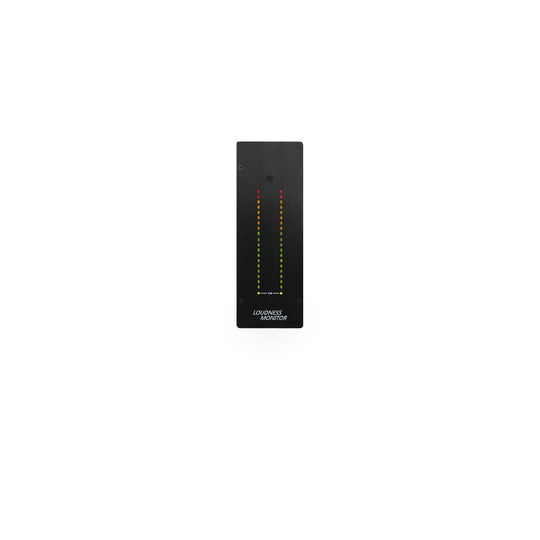

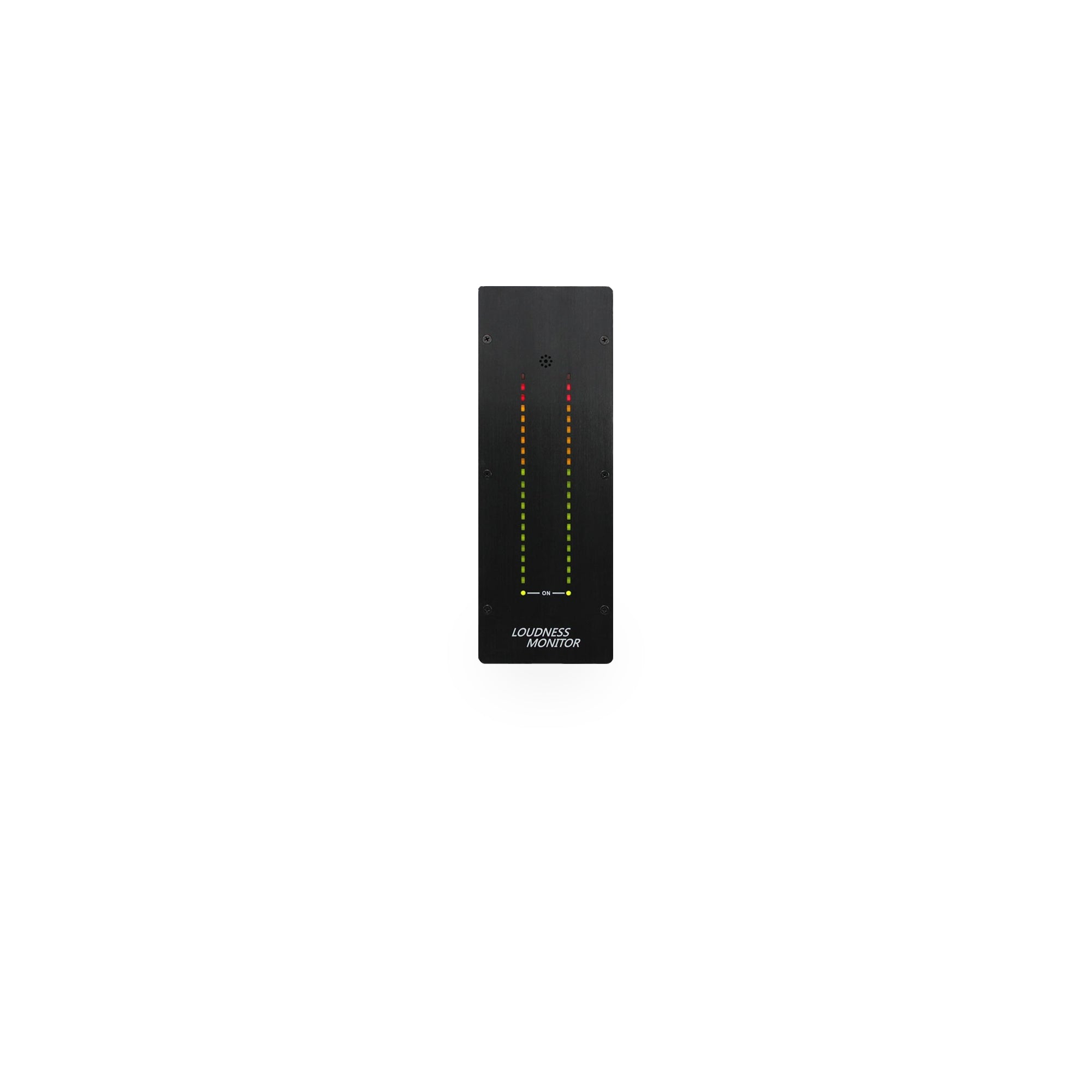

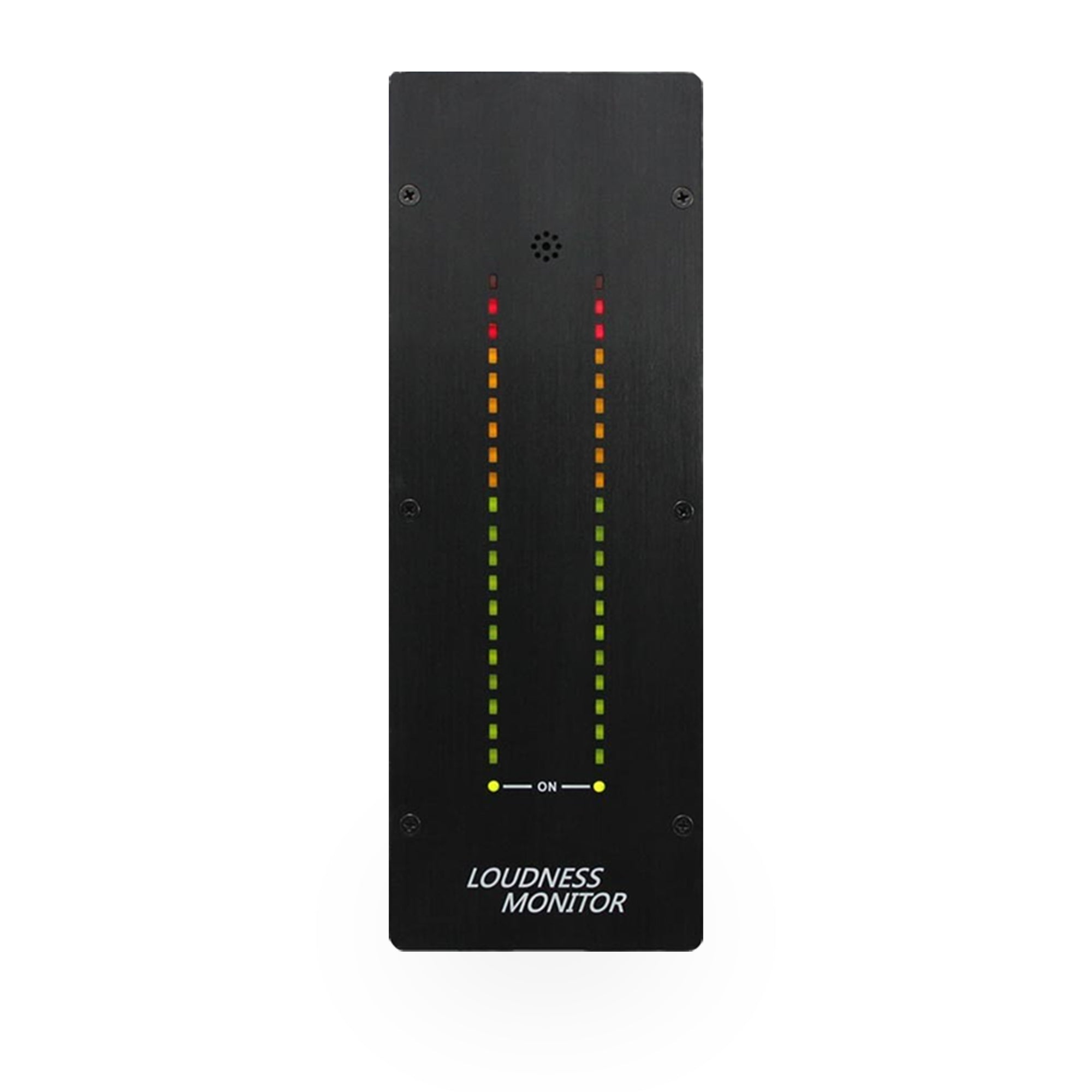

The Trigger LM30 SPL Loudness Monitor and Volume Limiter
The Trigger is a simple yet powerful wall-mounted SPL display designed to give fitness studios instant visual awareness of in-room sound levels — empowering instructors to self-regulate volume while protecting your facility from excessive noise.
Using a calibrated internal microphone, The Trigger continuously monitors room decibel levels and translates them into a bright, color-coded LED display. The clear Green → Yellow → Red system provides immediate, easy-to-understand feedback so instructors can adjust their output in real time — without needing to interpret complex audio meters.
More than just a monitor, The Trigger functions as an active volume controller when integrated with Fitness Audio systems. Once preset limits are exceeded, it automatically activates connected limiting solutions — creating a foolproof, always-on sound management ecosystem that maintains consistency across classes, instructors, and training zones.
Key Features
A warning light everyone understands
No app, no dashboard, no daily calibration ritual. The LED ladder is visible from across the room, so the instructor, the members, and the manager are all looking at the same truth. Choose A or C weighted readings to match how your room actually carries sound.
Or let it turn the volume down itself
The HC-24's power sharing connection joins up to three docks in series off a single power supply, charging up to six transmitters at once. One outlet, one tidy charging station at the front desk, every instructor's pack ready for the next class.
Simple install and tidy wiring
An intelligent compensation charging circuit with output-short protection manages the whole process. A full charge takes about 5 hours on 1.2V 2100mAh rechargeable AAs, so packs can sit docked overnight without babysitting.
Built for more rooms than gyms
Group fitness studios and cycle rooms are the obvious fit, but The Trigger earns its wall space anywhere volume needs a referee: school music rooms, youth programs, community halls, bars, and offices with shared spaces. Anywhere the loudness conversation keeps happening, this stops it.
The Trigger LM30
Real-time SPL display with settable trigger level
79 to 109 dB, adjustable in 3 dB steps

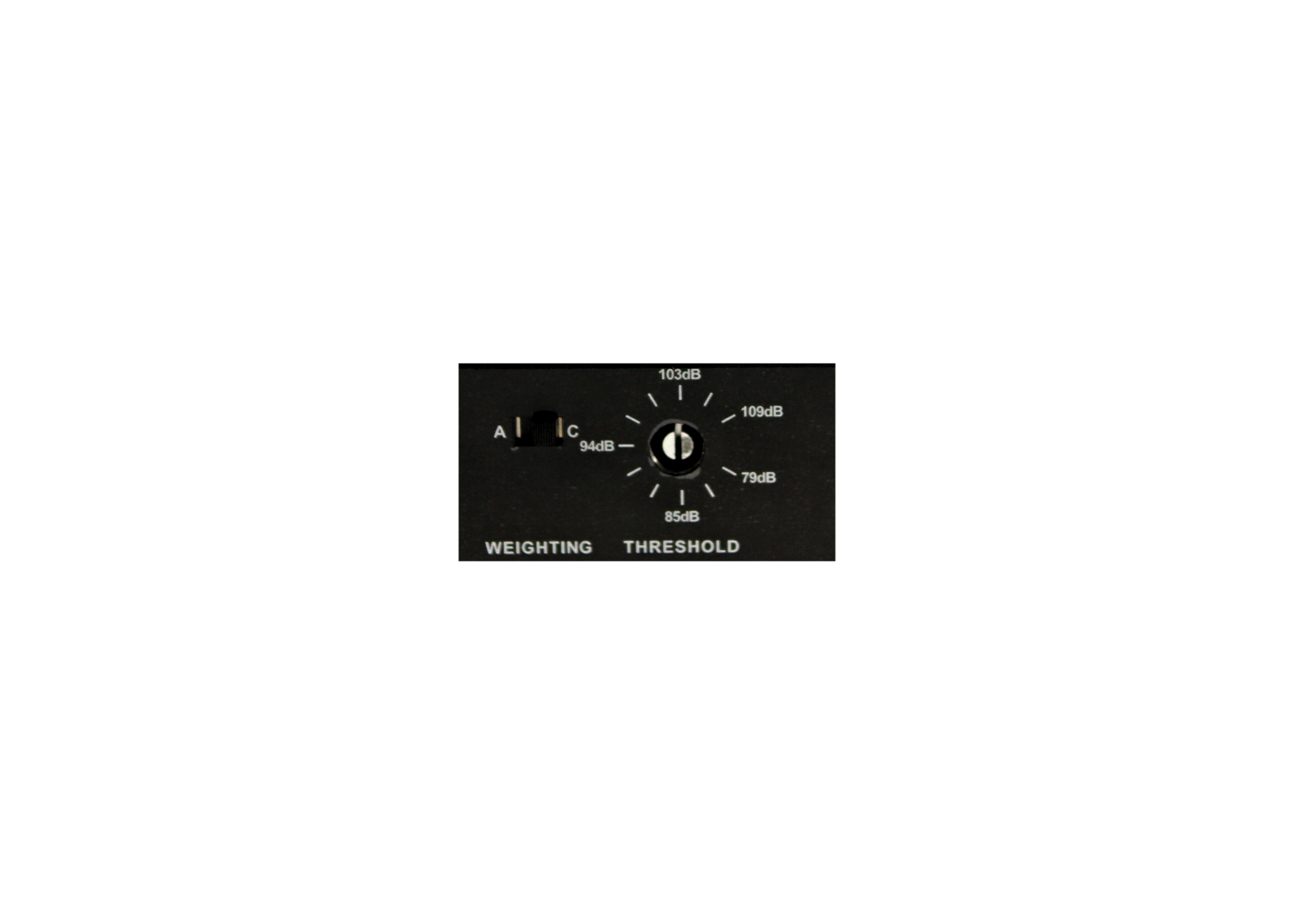

A or C weighted readings
LED ladder: green normal, yellow within 6 dB of limit, red at limit, full red over
Activates Aeromix Audio Slap (15 dB duck) or Gov'nor limiting after 2+ seconds over limit
Molex connectors, CAT5/CAT6 cable, up to 33 ft (10 m)

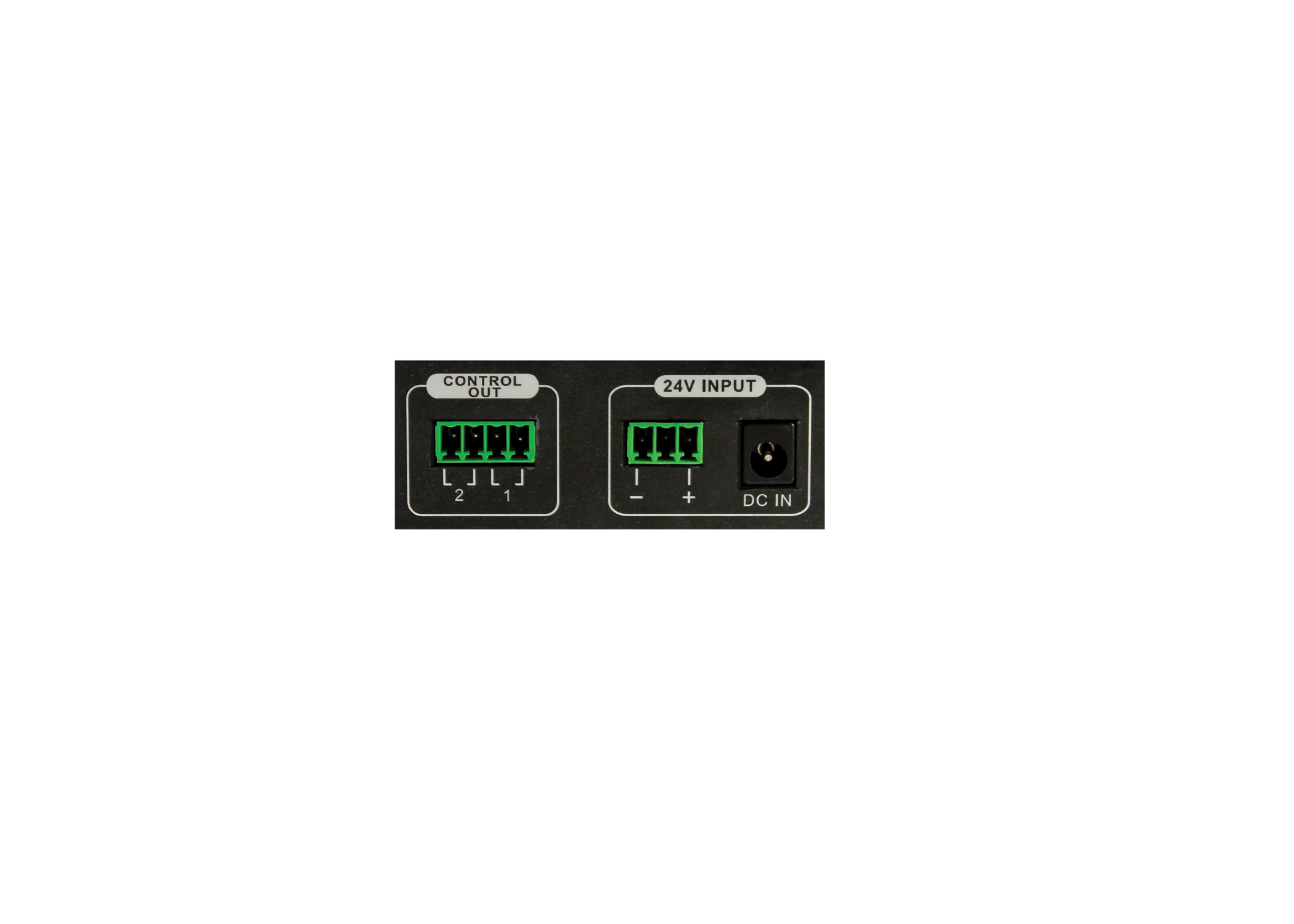

Two 24V power options
Wall mount holes on rear
Yes, works as an indicator without a mixer or limiter
Video
FAQ
Does it actually turn the music down, or just warn people?
Both, your choice. On its own it's a visual indicator. Linked to a Fitness Audio Aeromix mixer or the Gov'nor SPL limiter, it actively reduces the volume when the room exceeds your set limit.
What level should I set it to?
That depends on your room, your programming, and local requirements. Many operators start in the mid 90s dB for group fitness and adjust from there. The 79 to 109 dB range in 3 dB steps covers everything from office spaces to high-energy cycle rooms. Check your local noise ordinances and lease terms; The Trigger enforces the limit you choose, but choosing it is on you.
What's the difference between A and C weighting?
A weighting reads the way human hearing perceives loudness and is what most regulations reference. C weighting captures more low-frequency energy, useful in bass-heavy rooms where the thump is the problem. The Trigger supports both.
How do instructors work with it?
One instruction covers it: mix to one row of red LEDs on the sound peaks. Yellow is the early warning zone starting 6 dB before the limit, so there's no surprise when red appears.
Do I need Fitness Audio equipment to use it?
No for monitoring, yes for automatic enforcement. As a standalone display it works with any sound system. The active volume-restriction features link specifically to Fitness Audio Aeromix mixers and the Gov'nor SPL limiter.
How far can it be from the mixer or limiter?
Up to 33 feet (10 m) over CAT5 or CAT6 cable with the Molex link connectors, which lets you mount the display where the class sees it and keep the electronics at the rack.
