UTX16 Rechargeable Beltpack Transmitter
Rechargeable 16-channel UHF beltpack transmitter. Drop-in upgrade for existing U-Series systems - pairs with your SDR-5616 receiver. LCD display, AA rechargeable batteries, HC24 dock charging, button lock, and dual gain controls. No receiver or headset included.
Available frequencies: 520 / 536 / 540 / 560 / 580 MHz
About the UTX16
Rechargeable beltpack transmitter with LCD display, dock charging, and button lock. Pairs with any existing U-Series SDR-5616 receiver. The SM716 replacement studios have been waiting for.
520 / 536 / 540 / 560 / 580 MHz (select at checkout)
2x AA - alkaline or NiMH rechargeable per transmitter
Channel, frequency, battery level
Yes
Dual - GT (high-impedance) + MT (low-impedance)
HC24 compatible (sold separately)
None
Marine-grade coated
T4 MultiMic
U-Series SDR-5616
EMic, Aeromic, Cyclemic, FM-41 (all with T4 connector)
12 Months
Upgrading existing U-Series systems, replacing worn SM716 transmitters, adding a backup transmitter
Drop In. Charge Up. Teach.

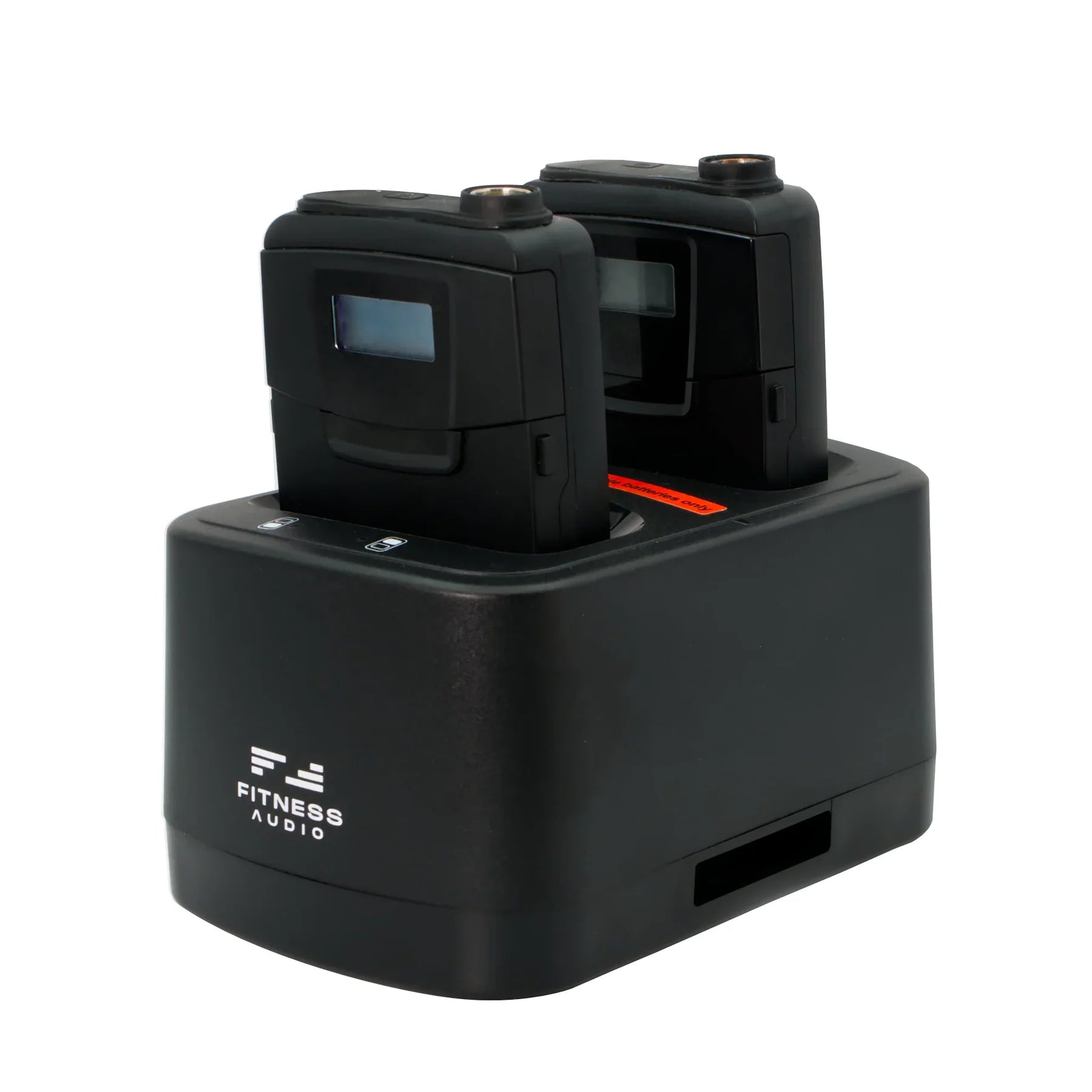

The UTX16 pairs with the HC24 charging dock for true grab-and-go operation. Finish class, drop the beltpack in the dock, and it's charging - no opening battery doors, no swapping cells, no ongoing battery costs. The LCD shows you exactly how much charge is left, so you're never surprised mid-class. Prefer disposables? The UTX16 runs on standard AA alkalines too, so you're covered even if the dock isn't handy.
FAQ
Will this work with my existing receiver?
Yes. Set the UTX16 to the same channel and frequency as your SDR-5616 receiver and it pairs immediately.
Do I need to buy a headset too?
Only if you need a new one. Any Fitness Audio headset with a T4 MultiMic connector works - EMic, Aeromic, Cyclemic, or FM-41. If your current headset has a T4 plug, it connects to the UTX16 the same way it connected to the SM716.
What's the main reason to upgrade from the SM716?
Rechargeable batteries and the LCD display. No more 9-volts. No more guessing battery life. Drop it in the HC24 dock between classes and it charges. The button lock and dual gain controls are bonuses.
Does the headset plug in the same way?
Yes. Same T4 MultiMic connector. Plug in and go.
