Aeromix 1+1SR

Professional Sound, Compact Design.

The little brother to the industry-standard Aeromix 2+2SR. We took the best-sounding, easiest-to-use mixer on the market and built a smaller, more streamlined version. The Aeromix 1+1 Mini Mixer delivers the same pristine audio quality and intuitive control in a compact package perfect for smaller studios or simpler setups.

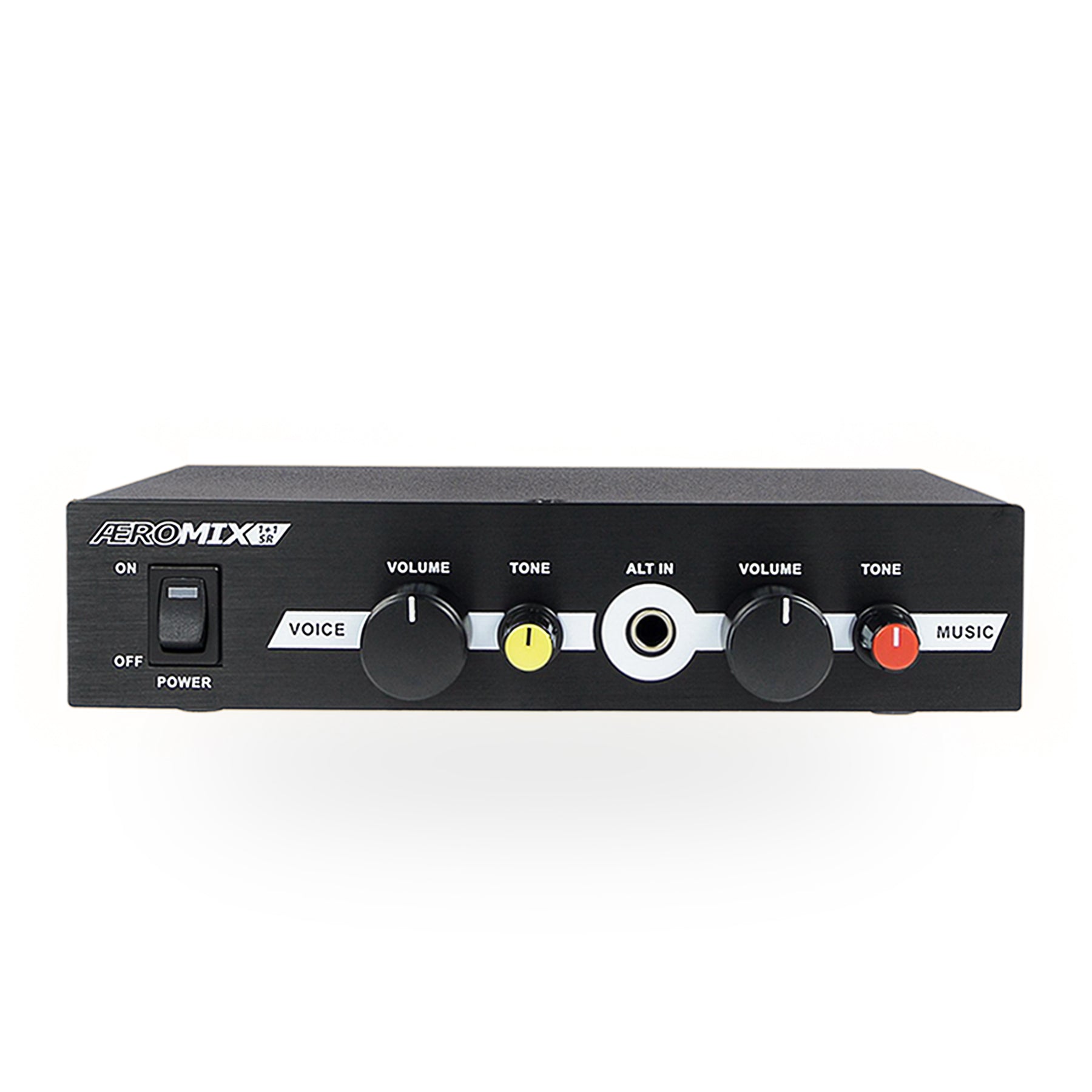

With a front-panel jack for easy music connection, separate tone controls, and a dedicated streaming output, the Aeromix 1+1 is the ultimate solution for achieving professional sound without a complicated control board.

• SIMPLIFIED PRO CONTROLS: A limited number of knobs makes it easy to use, while still offering separate Bass & Treble adjustments for both the microphone and music channels.

• PLUG & PLAY MUSIC INPUT: The smart front-panel jack automatically detects when a phone or MP3 player is connected with the included iJax cable, eliminating any need to fumble with rear-panel connections.

• STREAMING READY: Just like its big brother, this latest version features an independent 3.5mm output with its own volume control, making it simple to send your audio mix to a computer or phone for live streams.

• SUPERIOR SOUND QUALITY: The professional Combi-Jack input accepts balanced XLR cables for a richer vocal tone with less interference. The entire unit has been optimized by the Aeromic Lab Team for clean highs, punchy bass, and zero hiss.

• BUILT-IN SAFETY & LOUDNESS CONTROL: Features the same critical Music Mute Relay for fire alarm integration and the "Audio Slap" circuit link for loudness monitoring to keep your facility safe and compliant.

• COMPACT & RACK MOUNTABLE: Its smaller footprint is perfect for tight spaces. An optional kit allows you to rack mount it by itself or side-by-side with a Fitness Audio wireless receiver for a clean, professional installation.

• 1 x Aeromix 1+1 Mini Mixer
• 1 x iJax 3.5mm Input Cable
• 1 x Power Supply Unit
• 1 x User Manual


Aeromix 1+1 Mini Mixer

• Microphone Inputs: Connects to the output of a single wireless mic receiver via an XLR input.
• Music Inputs: Connects to phones, tablets, or Bluetooth receivers via RCA inputs.
• Outputs To: Power Amplifiers and sound systems via RCA outputs.

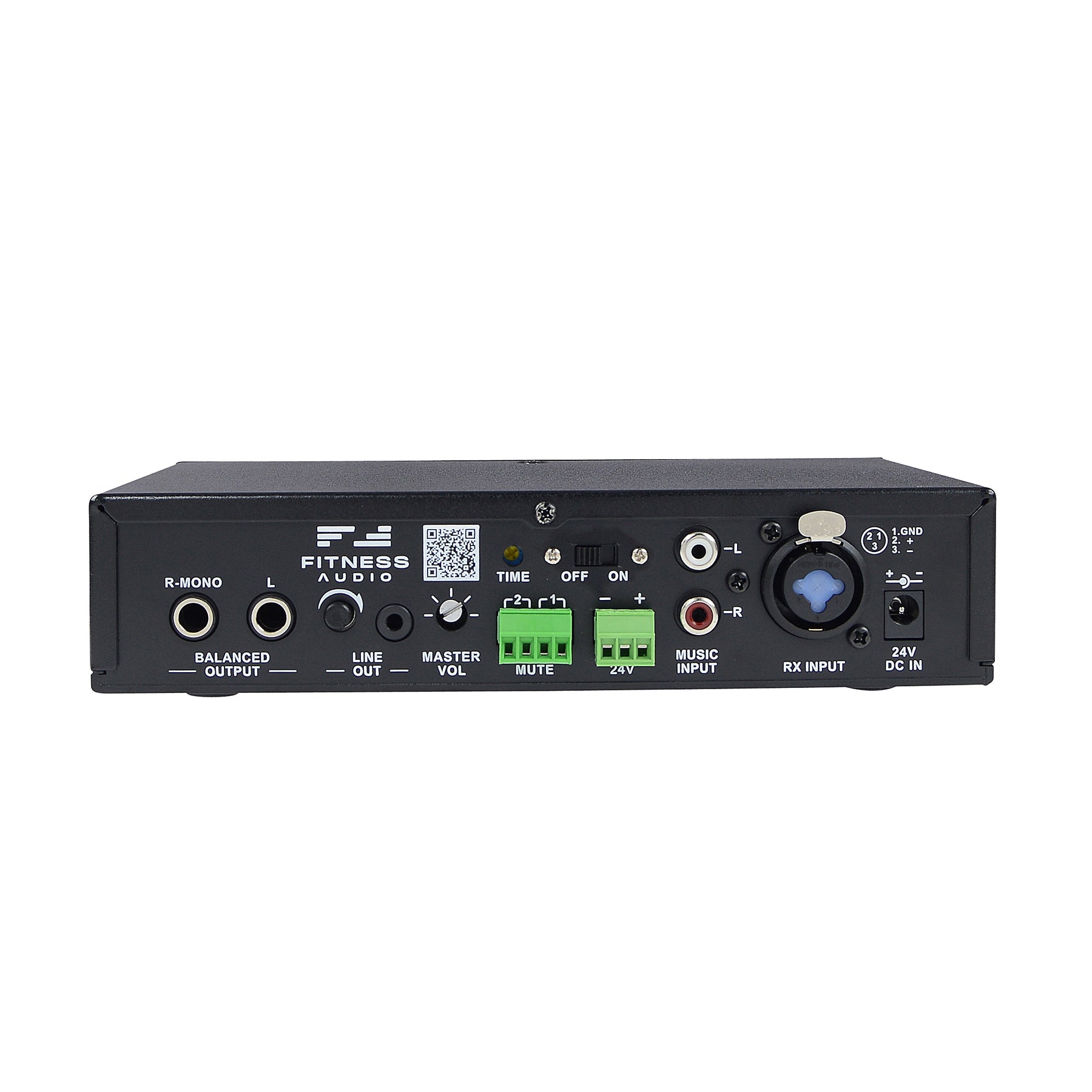

• Mic Input: 1 x Combination XLR / 6.35mm TRS Jack
• Music Inputs: 2 x Stereo (1 x RCA pair on rear, 1 x 6.35mm TRS on front)
• Main Output: 1 x TRS Stereo Pair (with Mono option)
• Streaming Output: 1 x 3.5mm Mini-Jack with independent volume control
• Power Supply: 24V for ultra-quiet operation
• Safety Links: EVAC Mute & Trigger/Loudness Monitor connection
• Master Volume: Recessed on rear panel for "set and forget" level control
