Name: SDR 5616
Brand: Fitness Audio Americas
SKU: SDR-5616-SU520
Price: 295.0 USD
Availability: InStock

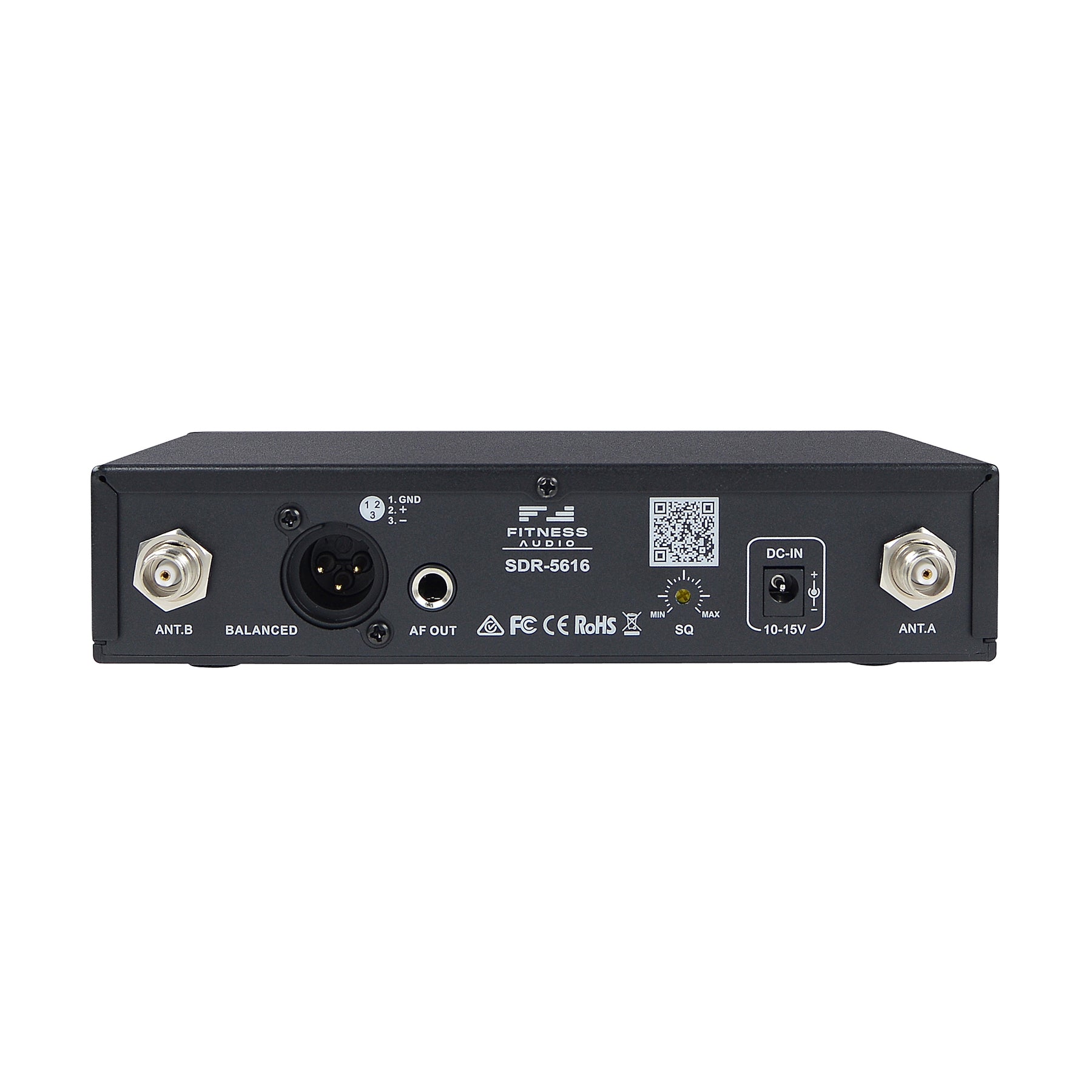

Back view of black Fitness Audio U-Series Receiver featuring two antenna inputs, in and outputs, and min/max SQ.

$295.00

Shipping calculated at checkout.

Which frequency should I choose?

If you’re replacing a receiver, select the same frequency band as your current Fitness Audio System above.

Unsure which fits your facility? Just enter your Facility ZIP Code below.

Adjustable Squelch Control

LED Indicators for RF Signal & Antenna Status

Free US Shipping

In stock, ready to ship
Backordered, shipping soon

The Heart of Your Sound System.

The Fitness Audio SDR 5616 is the rock-solid foundation for your wireless microphone system. This 16 channel UHF diversity receiver is engineered to eliminate dropouts and interference, delivering the stable, high-fidelity sound that fitness professionals depend on. With intuitive controls and professional outputs, the SDR 5616 is built for simple setup and flawless performance, day in and day out.

ZERO-DROPOUT CONNECTION: True diversity technology uses two independent antennas to ensure a stable, rock-solid signal, eliminating audio dropouts and interference.
INTERFERENCE-FREE SOUND: With 16 selectable UHF channels in range, you can easily find a clear frequency, even in crowded wireless environments.
PROFESSIONAL CONNECTIVITY: Features both a balanced XLR output for pro sound systems and an unbalanced 6.35mm jack for universal compatibility with mixers and amps.
EASY MONITORING: Clear LED indicators for RF signal and antenna status allow you to monitor your connection at a glance.
FINE-TUNE YOUR SIGNAL: An adjustable squelch control allows you to eliminate background RF noise for the cleanest possible audio signal.

1 x Fitness Audio SDR-5616
1 x System Power Supply
1 x 1/4" Line Cable
1 x User Manual

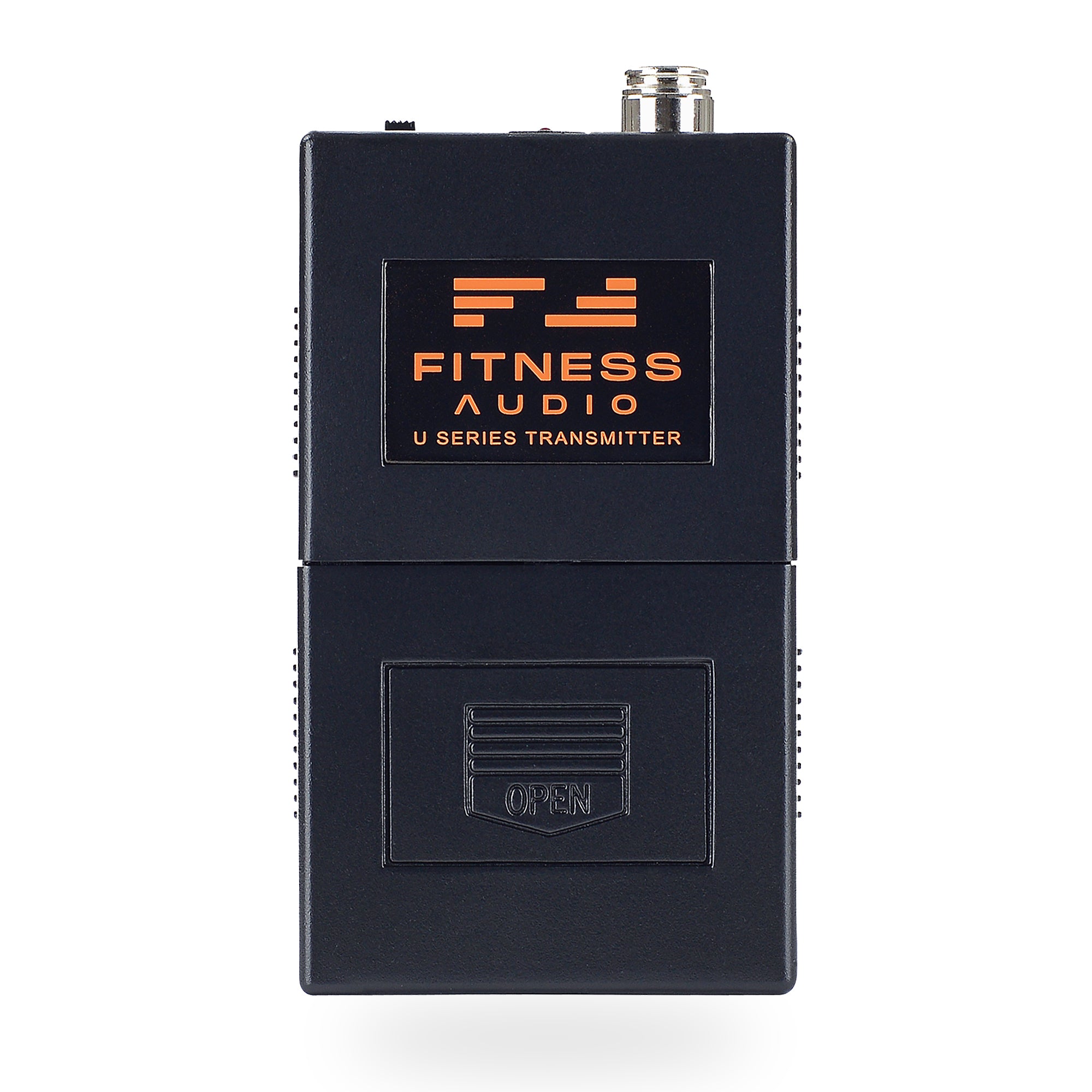

U-Series Beltpack UHF System

Compatible Microphones: Aeromic, Cyclemic, E-Mic, FM41 (All T4 versions)
Connector Type: 4-Pin Mini XLR (T4)

U-Series MTU8 Mini Tx

Compatible Microphones: Aeromic, Cyclemic, E-Mic, FM41
Connector Type: 4-Pin Mini XLR (T4)

Fitness Audio DX6 Digital

Compatible Microphones: Aeromic, Cyclemic, E-Mic (T4 versions)
Connector Type: 4-Pin Mini XLR (T4)

Receiver Type: UHF Synthesized True Diversity
S/N Ratio: >105dB(A)
T.H.D.: <0.6% @ 1KHz
Outputs: 1x Balanced XLR, 1x Unbalanced 6.35mm Phone Jack
Power Supply: DC 12V / 500mA
Dimensions: 210(W) x 44(H) x 180(D)mm
