Aeromix 2+2SR
- Automatic Voice-Over
- Sweat-Resistant Construction
- Free worldwide shipping
- In stock, ready to ship
- Backordered, shipping soon
The Heartbeat of the Studio

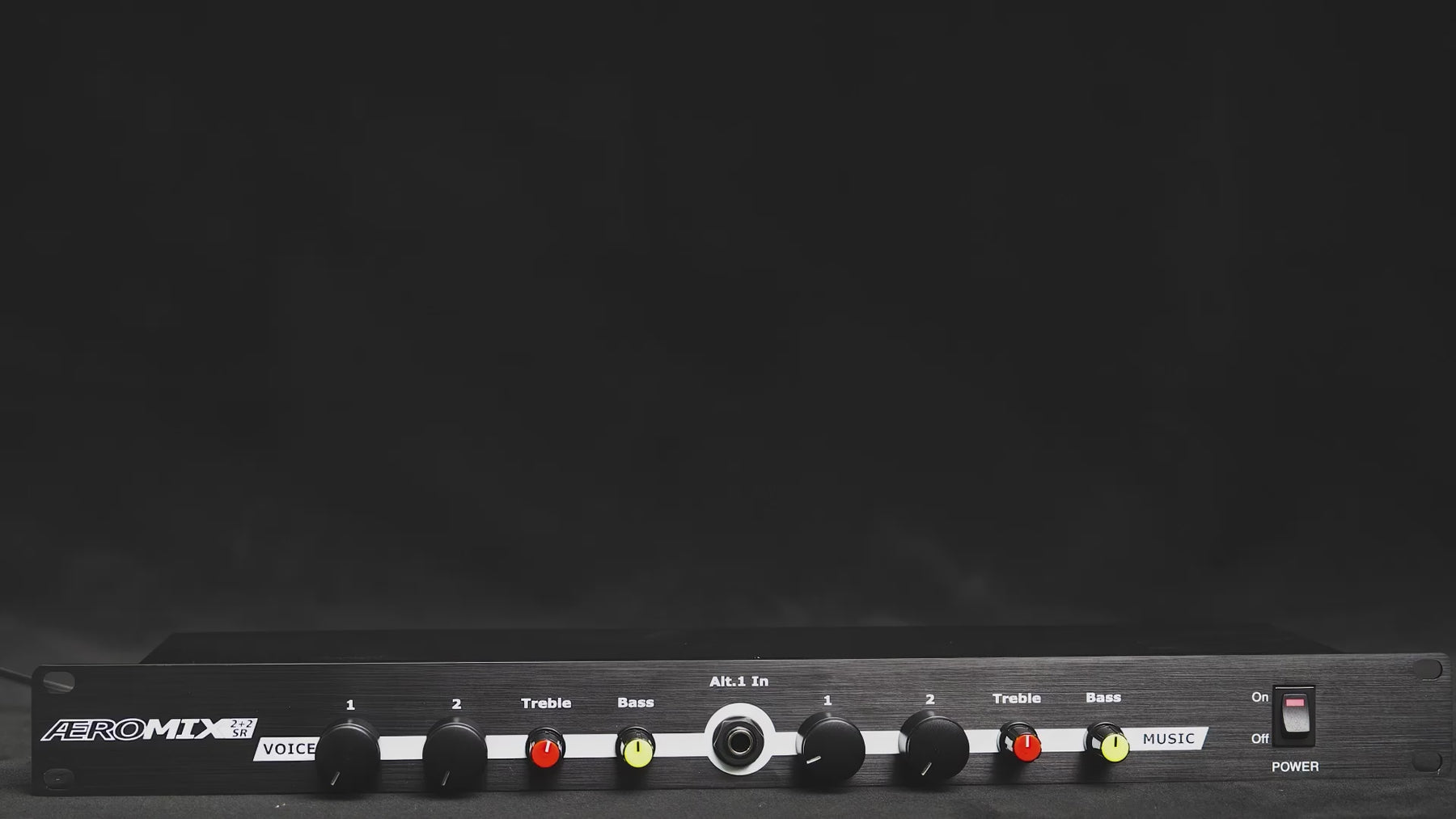

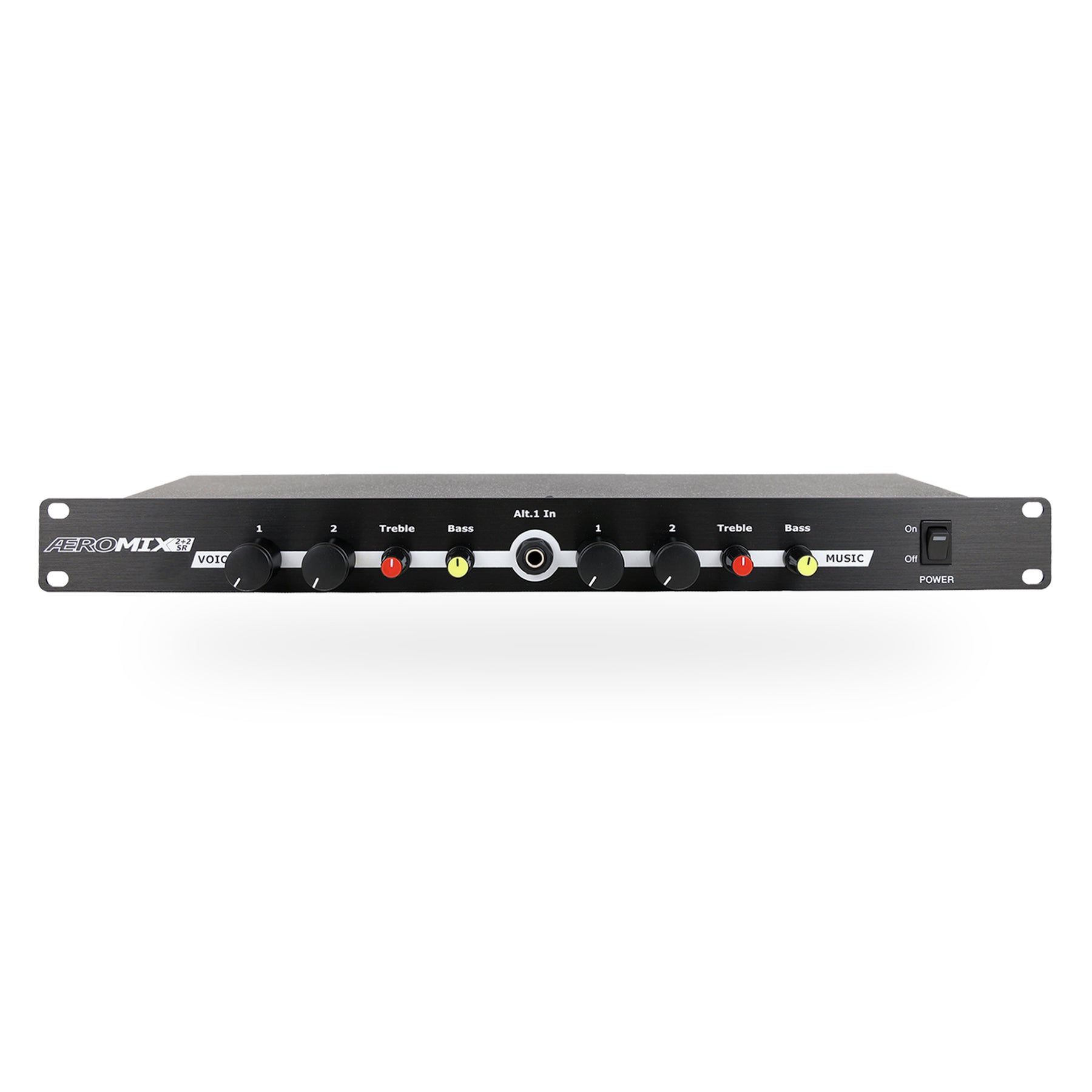

The Aeromix 2+2SR is the legendary audio mixer trusted by thousands of fitness clubs worldwide. Renowned for its set and forget simplicity and robust build, it's engineered to give instructors effortless control while providing managers with powerful safety and sound management features.
From its plug-and-play music input to its dedicated live-streaming output, the Aeromix 2+2SR is the all-in-one solution for perfect audio in any group fitness class.
-
EFFORTLESS MUSIC PLAYBACK: The unique, auto-selecting input and included iJax cable let instructors walk up, plug in their phone or MP3 player, and play music instantly. No complicated setup needed.
-
TOTAL SOUND CONTROL: Separate, color-coded Bass & Treble controls for both the microphone and music channels mean you can dial in the perfect sound, adding deep bass to the music and crisp clarity to the instructor's voice.
-
NOW STREAMING READY: Features a new, independent 3.5mm output with its own volume control, making it simple to send your complete audio mix to a computer or phone for high-quality live-streamed or recorded classes.
-
PRO-GRADE MIC INPUTS: Combination inputs accept both standard 1/4" jack plugs and professional balanced XLR cables, which provide a richer vocal tone with less interference.
-
BUILT-IN SAFETY EVACUATION: The Music Mute Relay connects to your facility's fire alarm. In an emergency, it automatically mutes the music while leaving the instructor's microphone live for clear evacuation instructions.
-
LOUDNESS MANAGEMENT (AUDIOSLAP CIRCUIT): Connect the Aeromix to a Soundear SPL Monitor (sold separately) to automatically reduce volume by 15dB if preset sound levels are exceeded, protecting members and complying with noise regulations.
- 1 x Aeromix 2+2SR Mixer
- 1 x iJax 3.5mm Input Cable
- 2 x 6.35mm Jack to XLR Output Cables
- 1 x Power Supply Unit
- 1 x User Manual
Aeromix 2+2SR
- Microphone Inputs: Connects to the outputs of any wireless mic receiver (like the SM-716, DX6, etc.) via XLR or 1/4" Jack cables.
- Music Inputs: Connects to instructor phones/tablets (via included iJax cable) or a Bluetooth receiver like the AeroLink.
- Outputs To: Power Amplifiers and sound systems. Features a separate output for live-streaming feeds.
Inputs
- Microphone Inputs: 2 x Combo Jacks (Accepts both XLR and 1/4" connectors)
- Music Line Inputs:2 x Stereo RCA pairs (Rear Panel)1 x 1/4" TRS Stereo Jack (Front Panel, auto-sensing)
Outputs
- Main Outputs:1 x Stereo Pair, 1/4" TRS (1.5 Volt)1 x Stereo Pair, 1/4" TRS (1 Volt)
- Streaming/Recording Output: 1 x 3.5mm Mini-Jack with independent volume control (for connecting to computers or streaming devices)
Controls & Features
- Tone Controls: Independent Bass & Treble controls for both microphone and music channels.
- Master Volume: Recessed "set-and-forget" master volume control on the rear panel.
- Voice-Over: Automatic music ducking when speaking into a microphone.
- SPL Limiter: Connection for the Fitness Audio Trigger to automatically manage volume levels.
- EVAC Link: Music Mute Relay for connection to emergency evacuation systems.
Physical
- Form Factor: 1U Rack-mountable (rack ears included)
- Power Supply: External 24V DC Power Pack for low-noise operation.
- Construction: Heavy-duty knobs and pots designed for rust prevention.
