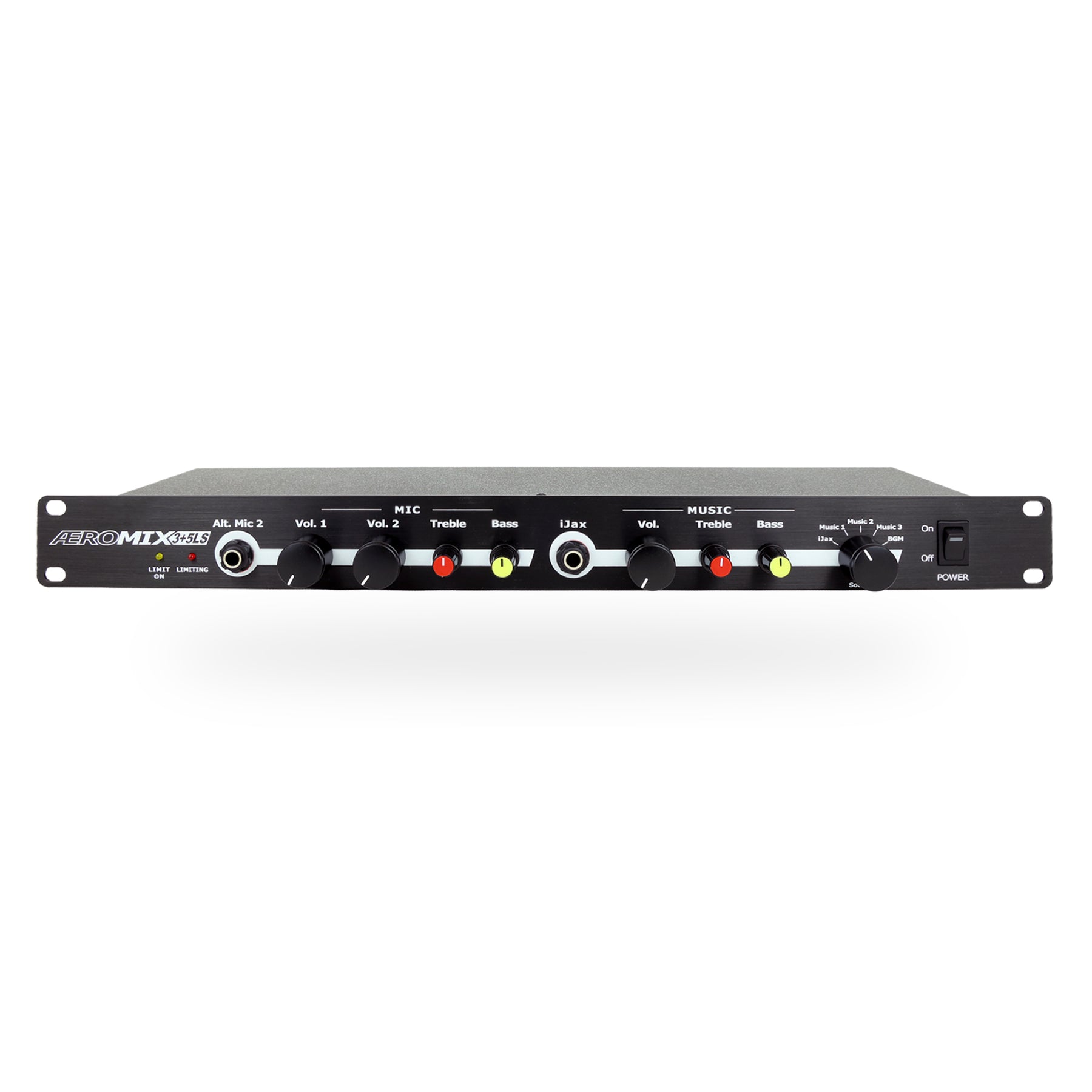

Aeromix 3+5LS

The Ultimate Command Center for Your Studio.

The Aeromix 3+5LS is our top-of-the-range audio solution. With massive 5 music and 3 microphone inputs, it can handle multiple instructors, virtual class audio, and background music simultaneously.

Its most powerful feature is the built-in USB output, allowing you to send your entire audio mix directly to a computer for flawless, high-quality live-streaming on platforms like Zoom. Combined with advanced managerial controls for volume and safety, the 3+5LS is the ultimate "set and forget" nerve center for the modern fitness club.

• BUILT-IN USB FOR LIVE STREAMING: A dedicated "Zoom Sound Ready" USB port sends your complete voice and music mix directly to any Mac or PC. No extra hardware needed to run professional-quality virtual classes.
• UNMATCHED CONNECTIVITY (5 MUSIC & 3 MIC INPUTS): Seamlessly switch between a front-panel jack for instructor phones, three rear RCA inputs for permanent devices, and a special Background Music (BGM) input for virtual class audio or house music.
• TOTAL MANAGEMENT CONTROL: A recessed Master Volume on the back panel lets you set the maximum system loudness. The BGM input volume is also set from the rear, preventing unauthorized users from turning it up too loud.
• INTEGRATED SOUND LIMITING: The "Audio Slap" circuit automatically reduces music volume by -15dB if a pre-set sound level is exceeded, protecting your sound system, your members' hearing, and your business.
• PRO AUDIO & BUILD: Features professional Combi inputs for cleaner-sounding balanced microphones, a silent 24V power supply for pristine audio, and heavy-duty, rust-resistant knobs and pots for unmatched durability.
• ESSENTIAL SAFETY FEATURES: The EVAC Link connects to your facility's fire alarm system, automatically muting music during an emergency while keeping the instructor's microphone active for evacuation procedures.

• 1 x Aeromix 3+5LS Mixer
• 1 x iJax 3.5mm Input Cable
• 2 x 6.35mm Jack to XLR Output Cables
• 1 x Power Supply Unit
• 1 x User Manual


Aeromix 3+5LS

• Microphone Inputs: Connects to the outputs of any wireless mic receiver (like the SM-716, DX6, etc.) via Combi XLR/Jack inputs.
• Music Inputs: Connects to instructor phones/tablets, background music systems, and virtual class audio players.
• Outputs To: Power Amplifiers, sound systems, and computers/laptops via a direct USB output for flawless streaming.

Inputs

• Microphone Inputs: 3 x Combo Jacks (XLR/1/4") with +15V Phantom Power
• Music Line Inputs: 5 x Stereo RCA pairs (Rear Panel)
• Auxiliary Input: 1 x 3.5mm Stereo Jack (Front Panel)

Outputs

• Main Output (Zone 1): 1 x Stereo Pair, Balanced XLR
• Zone 2 Output: 1 x Stereo Pair, RCA
• Streaming/Recording Output: 1 x 3.5mm Mini-Jack

Controls & Features

• Tone Controls: Independent Bass & Treble for Mic and Music channels
• Zone Routing: Assignable music inputs to Main (Zone 1) and Zone 2 outputs
• Voice-Over: Automatic music ducking with adjustable sensitivity control
• Master Volume: Independent master volume controls for Main and Zone 2
• EVAC Link: Music Mute connection for integration with emergency systems

Connectivity

• Bluetooth: Integrated Bluetooth 5.0 audio receiver

Physical

• Form Factor: 1U Rack-mountable
• Power Supply: External DC Power Pack
