Aeromix 1+1SR

Professional Sound. Compact Design.

The Aeromix 1+1 Mini Mixer delivers the same pristine audio performance and intuitive control as its larger siblings — in a streamlined, compact format ideal for smaller studios and simplified setups.

Designed for single-instructor environments, the 1+1 provides one professional microphone input and two music inputs, along with dedicated tone controls for both mic and music channels. The front-panel music jack automatically detects when a device is connected using the included iJax cable, making setup fast and frustration-free.

Like the flagship models, it includes an independent streaming output with its own volume control — allowing you to send your complete mix directly to a computer or phone for virtual classes and live streaming.

Built with balanced Combi XLR input, ultra-quiet 24V power supply, and integrated safety features, the Aeromix 1+1 delivers professional-grade sound in a footprint perfect for boutique studios or compact installations.

• Boutique fitness studios
• Yoga & Pilates spaces
• Personal training studios
• Small group training rooms
• Hybrid studios running live streams
• Facilities needing simplified control

Simplified Pro Controls

• Separate Bass & Treble for mic and music with minimal, intuitive knob layout.

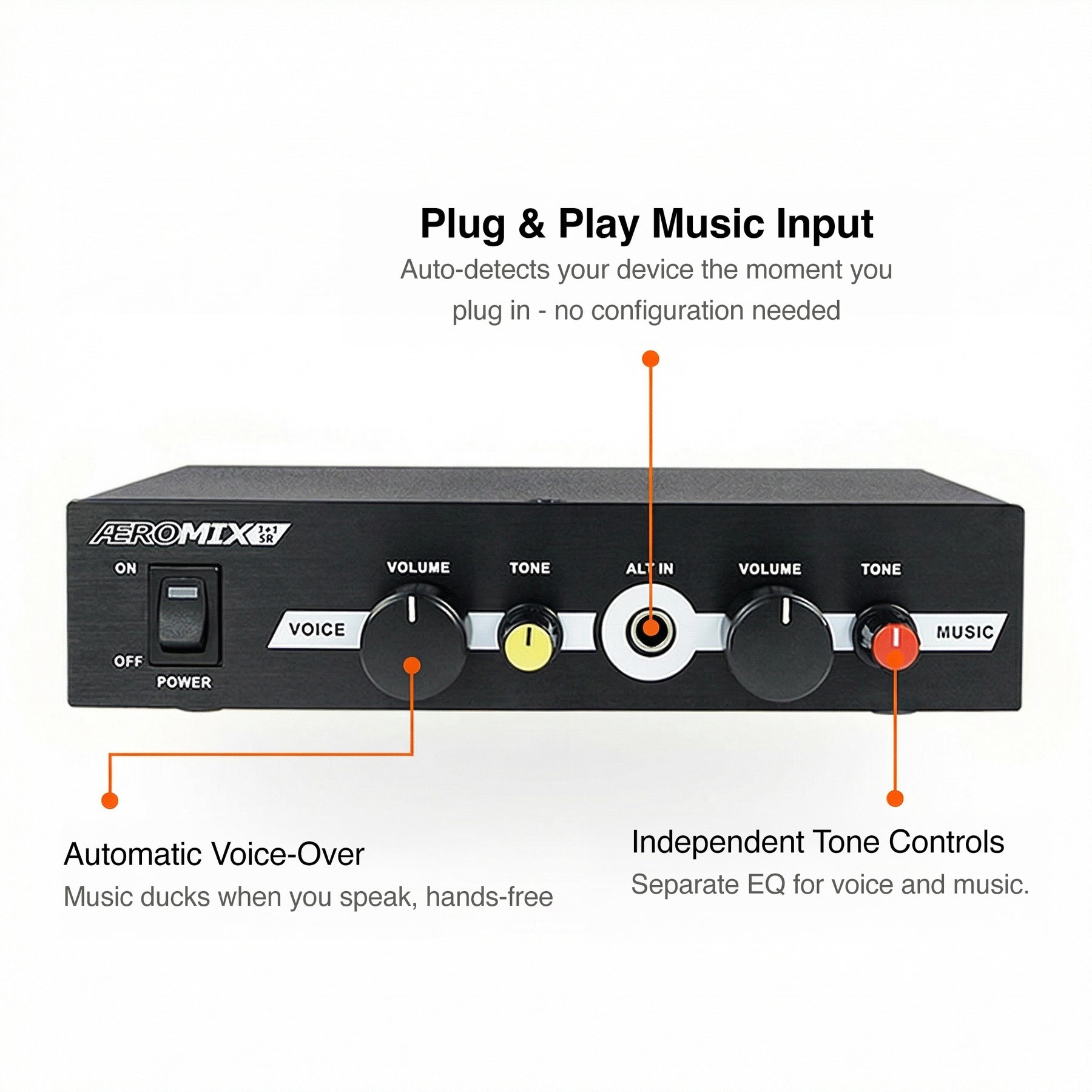

Plug & Play Music Input

• Front-panel jack auto-detects connected devices via included iJax cable.

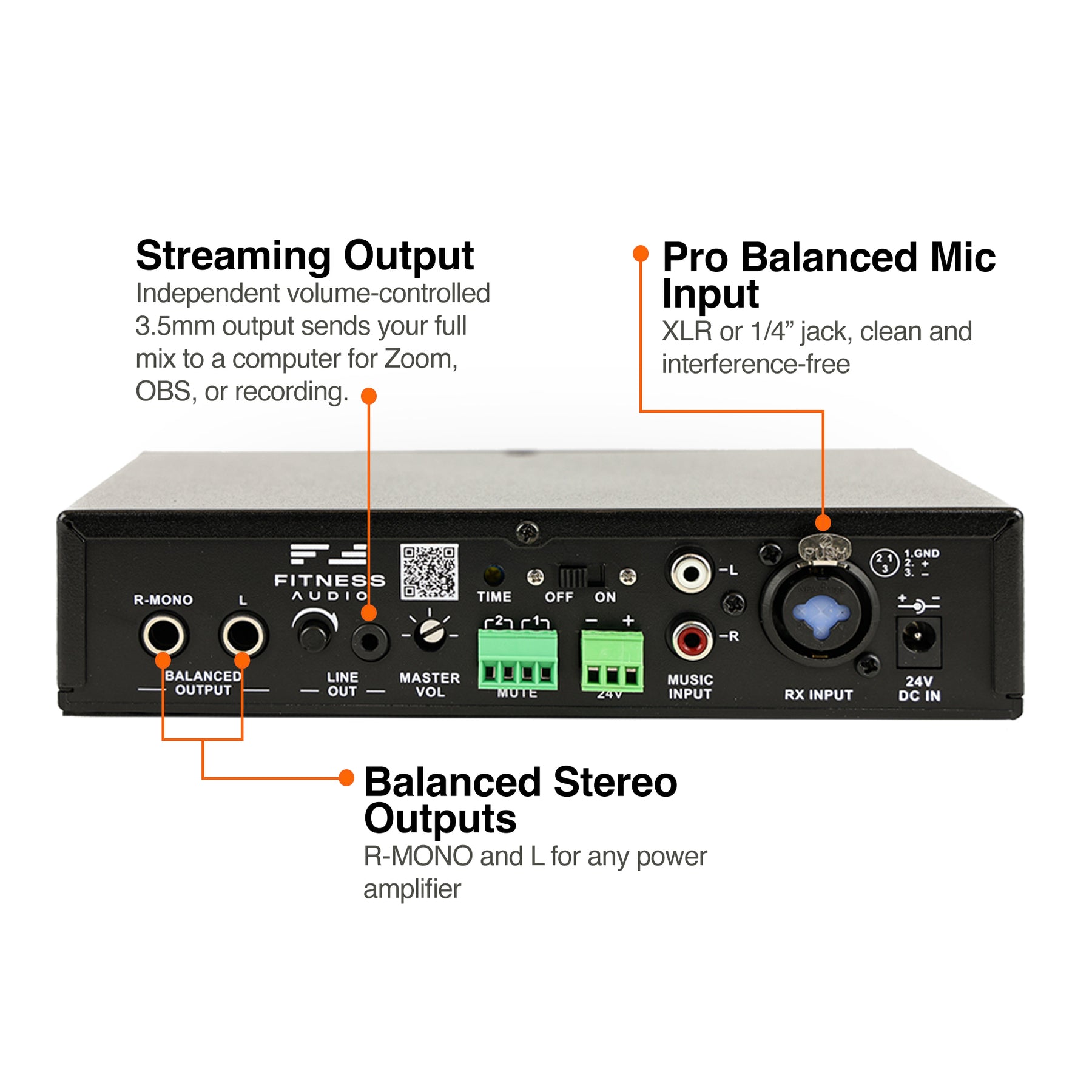

Streaming Ready

• Dedicated 3.5mm streaming output with independent volume control.

Superior Sound Quality

• Balanced XLR mic input for clean, interference-free vocal tone.

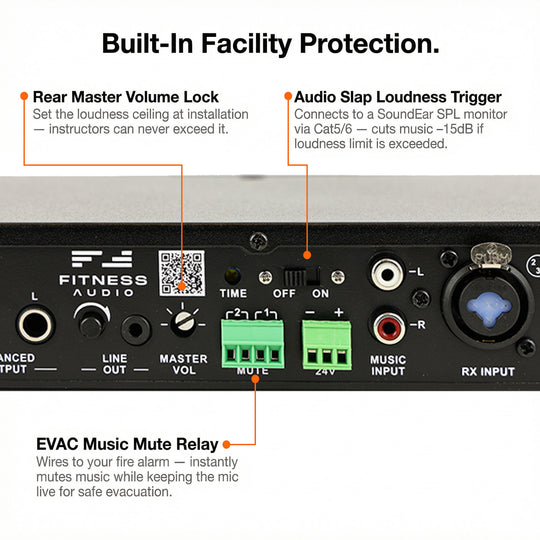

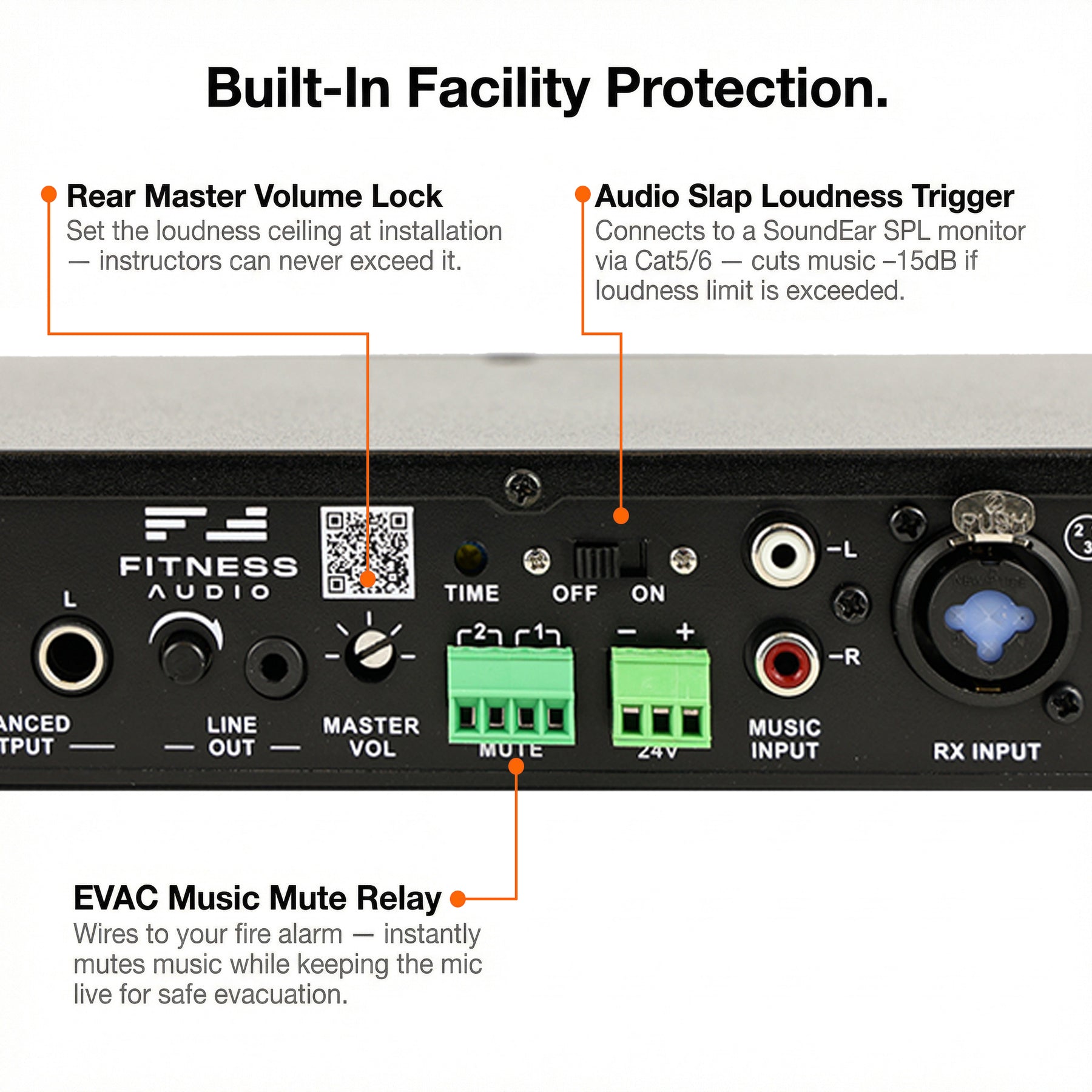

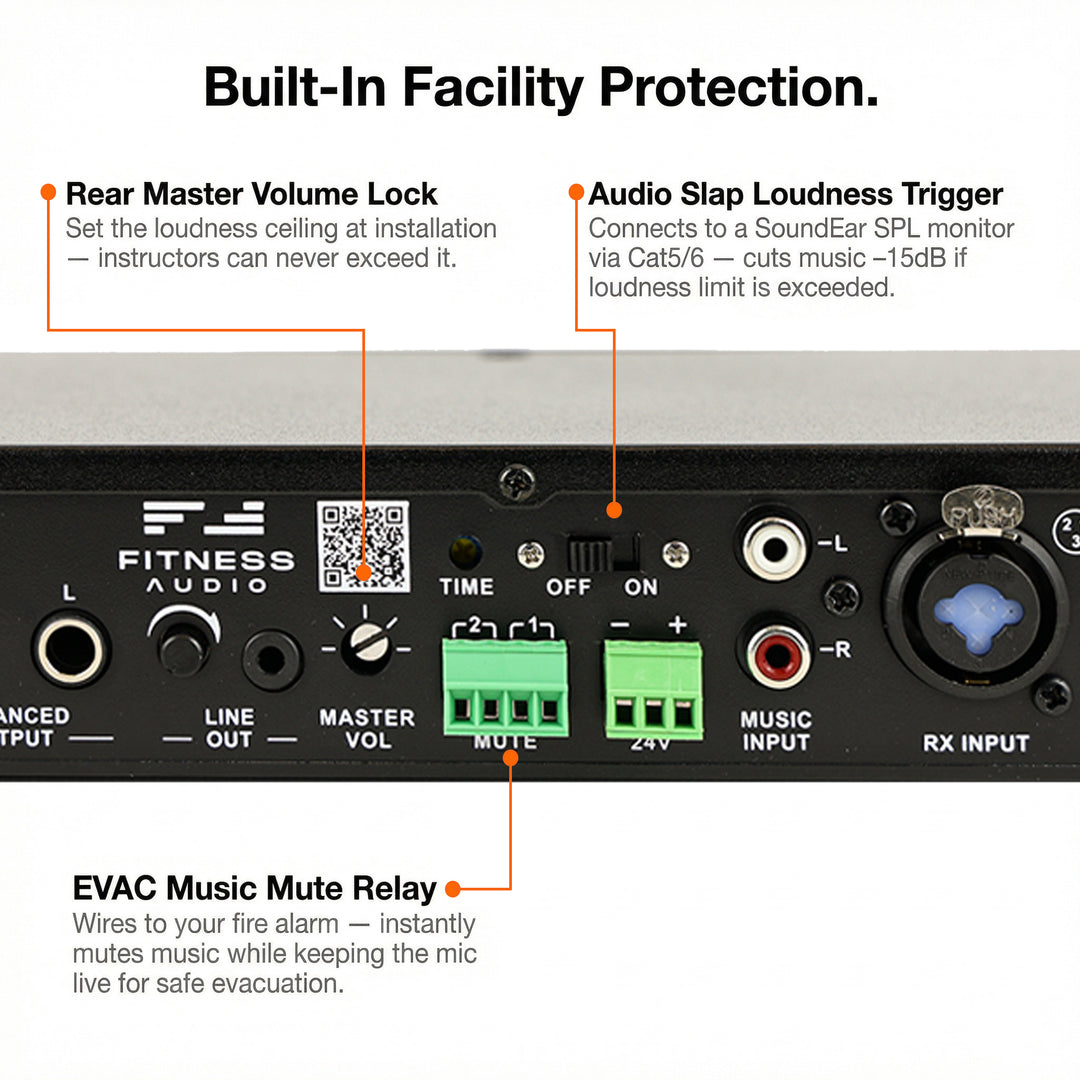

Built-In Safety Integration

• Music Mute Relay for fire alarm systems and Audio Slap loudness trigger link.

Compact & Rack Mountable

• Small footprint with optional rack mount kit for professional installs.

Mic Input

• 1 × Combination XLR / 6.35mm TRS Jack

Music Inputs

• 1 × Stereo RCA (rear)
• 1 × 6.35mm TRS (front panel)

Main Output

• 1 × TRS Stereo Pair (Mono option available)

Streaming Output

• 1 × 3.5mm Mini-Jack (independent volume control)

Power Supply

• 24V ultra-quiet operation

Safety Links

• EVAC Mute
• Trigger / Loudness Monitor connection

Master Volume

• Recessed rear-panel control

• 1 x Aeromix 1+1 Mini Mixer
• 1 x iJax 3.5mm Input Cable
• 1 x Power Supply Unit
• 1 x User Manual


Aeromix 1+1 Mini Mixer

• Microphone Inputs: Connects to the output of a single wireless mic receiver via an XLR input.
• Music Inputs: Connects to phones, tablets, or Bluetooth receivers via RCA inputs.
• Outputs To: Power Amplifiers and sound systems via RCA outputs.
